TESY AquaThermica Compact Air Source Heat Pump | 100L & 150L

£1,440.00 GBP

Sale Sold out

Taxes included.

Capacity

: 98L Actual Capacity | A+ Rated | CoP 3.4

100L 150L

Capacity

98

Dimensions

H: 1351mm | Ø: 541mm

Hot Water Run Time

7h 04min

Description

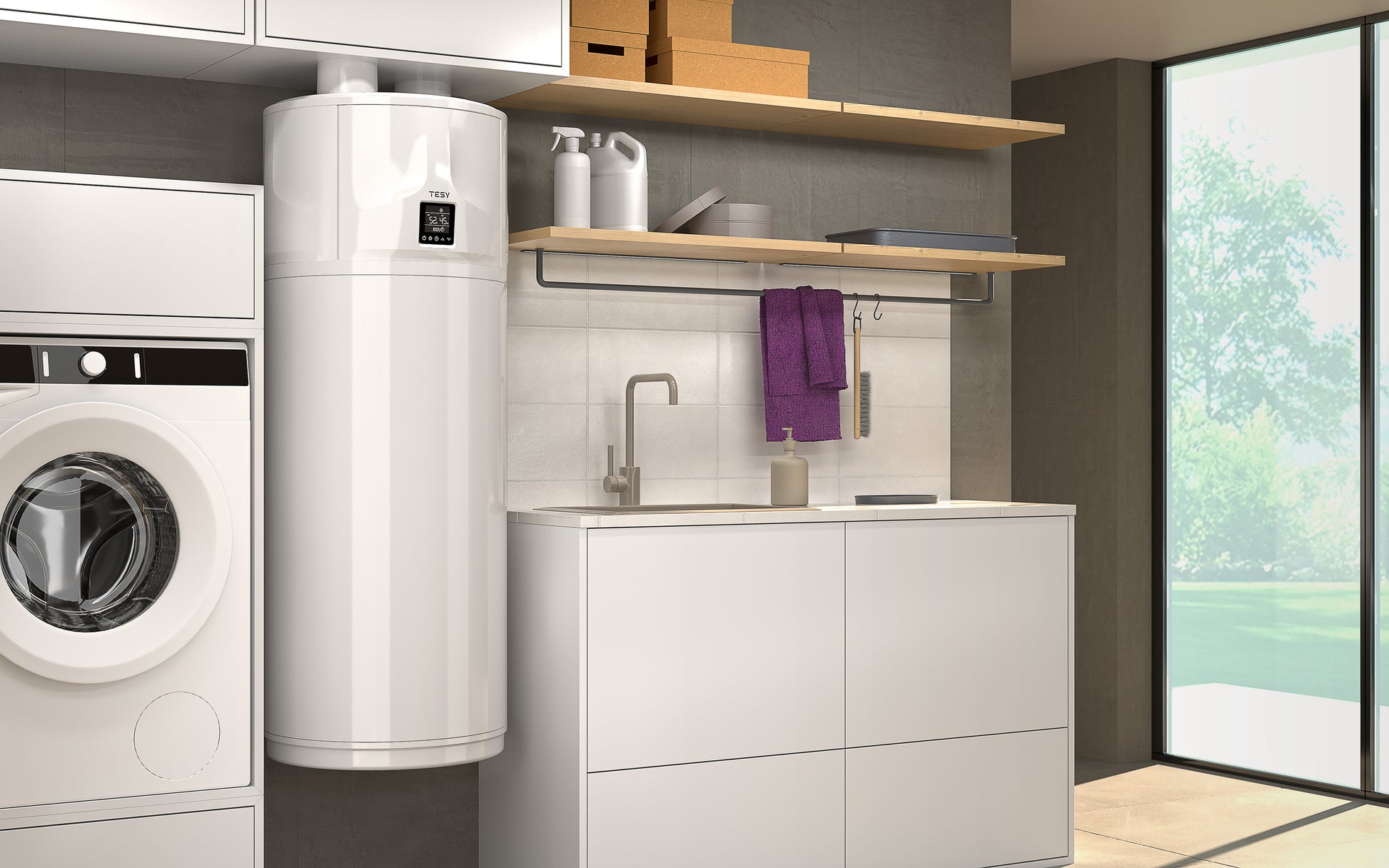

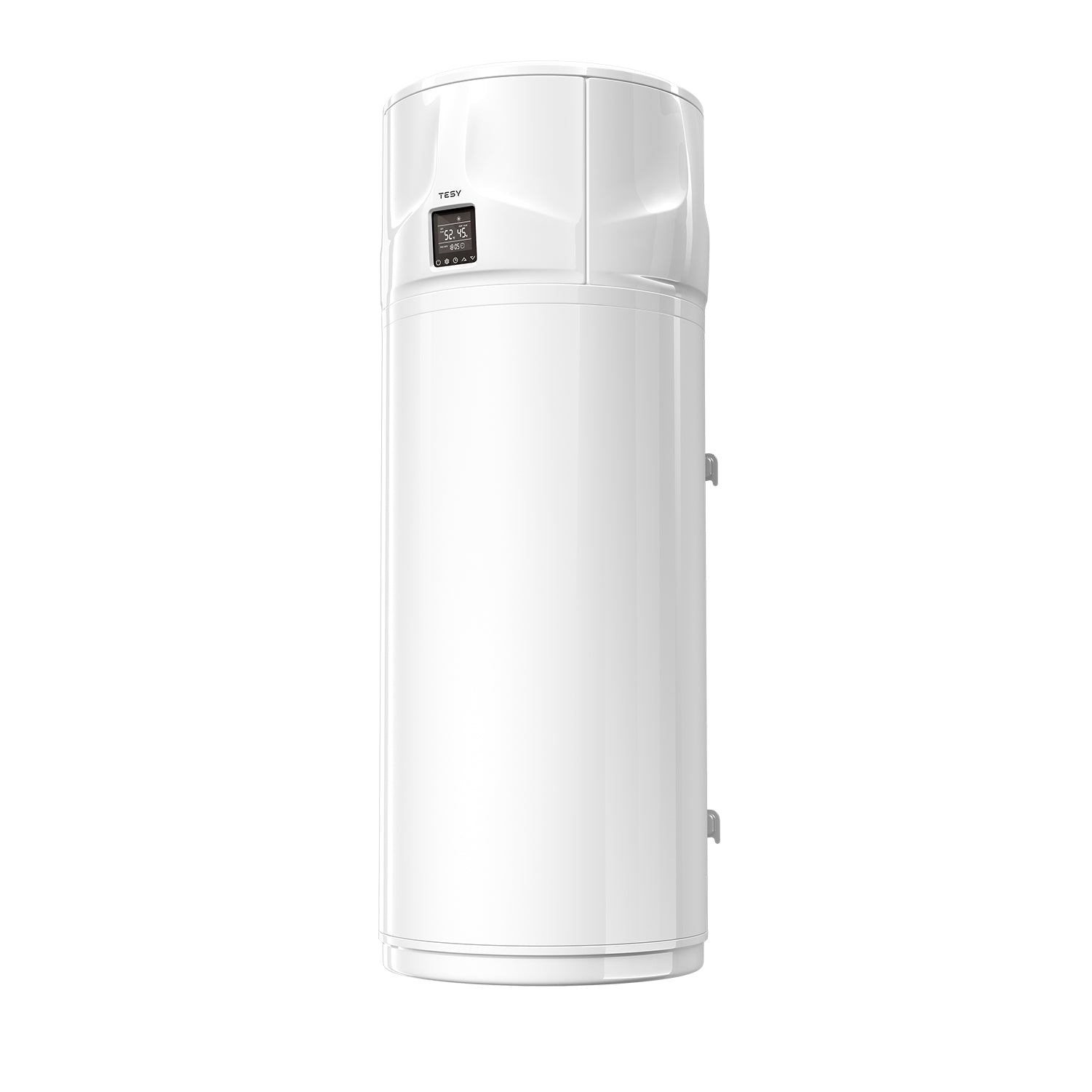

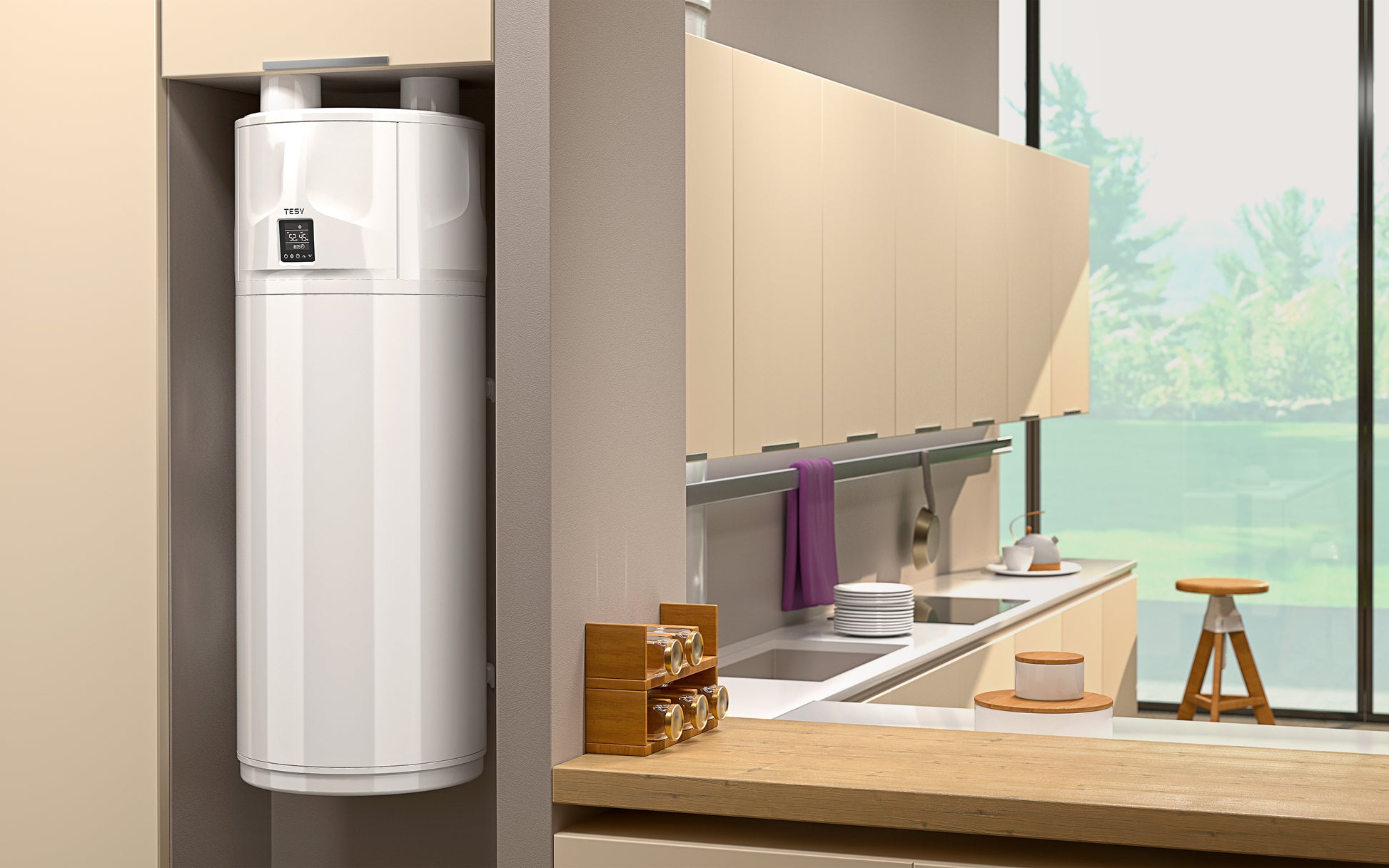

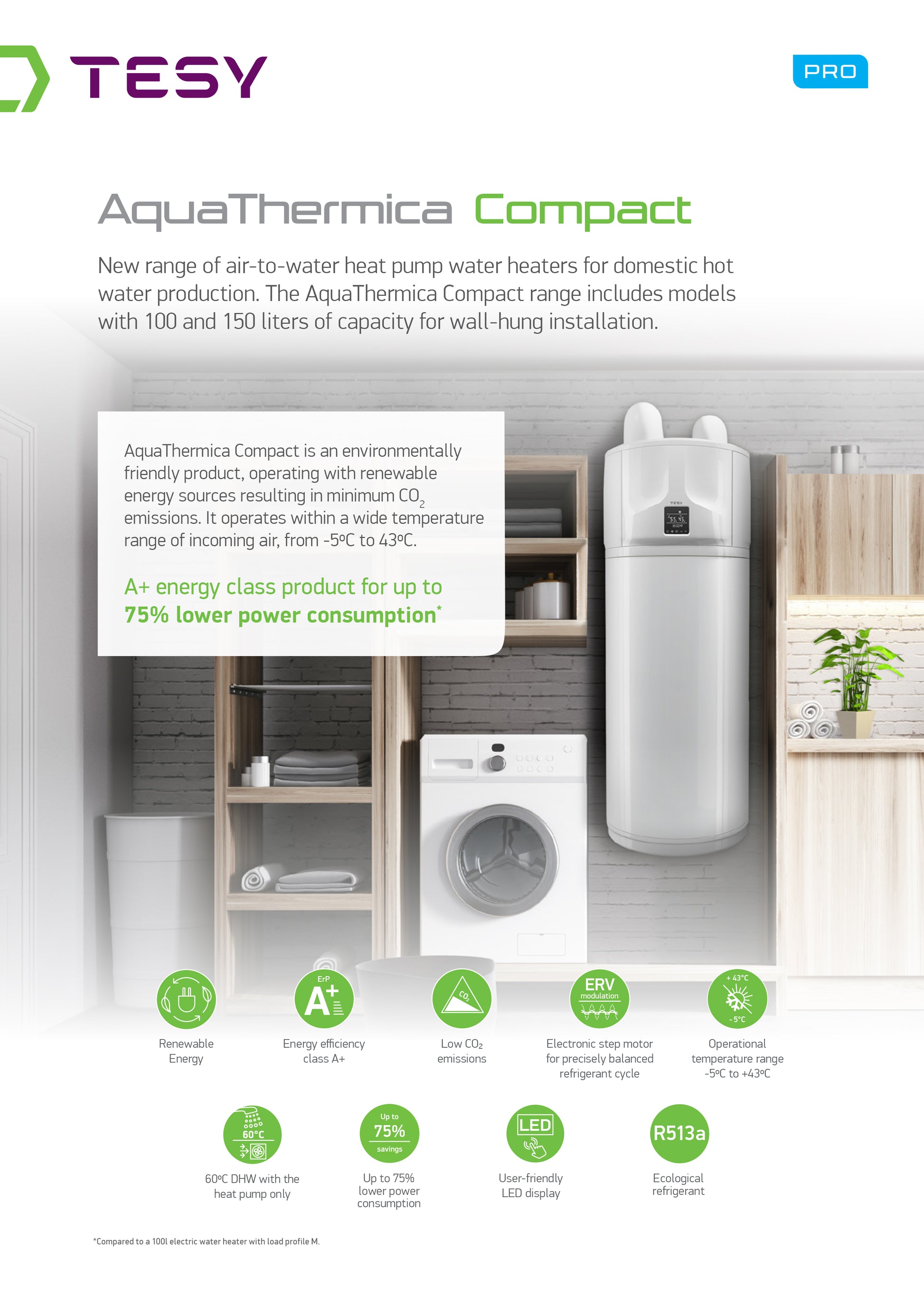

TESY AquaThermica – Wall-Hung Compact Air Source Heat Pump for Domestic Hot Water

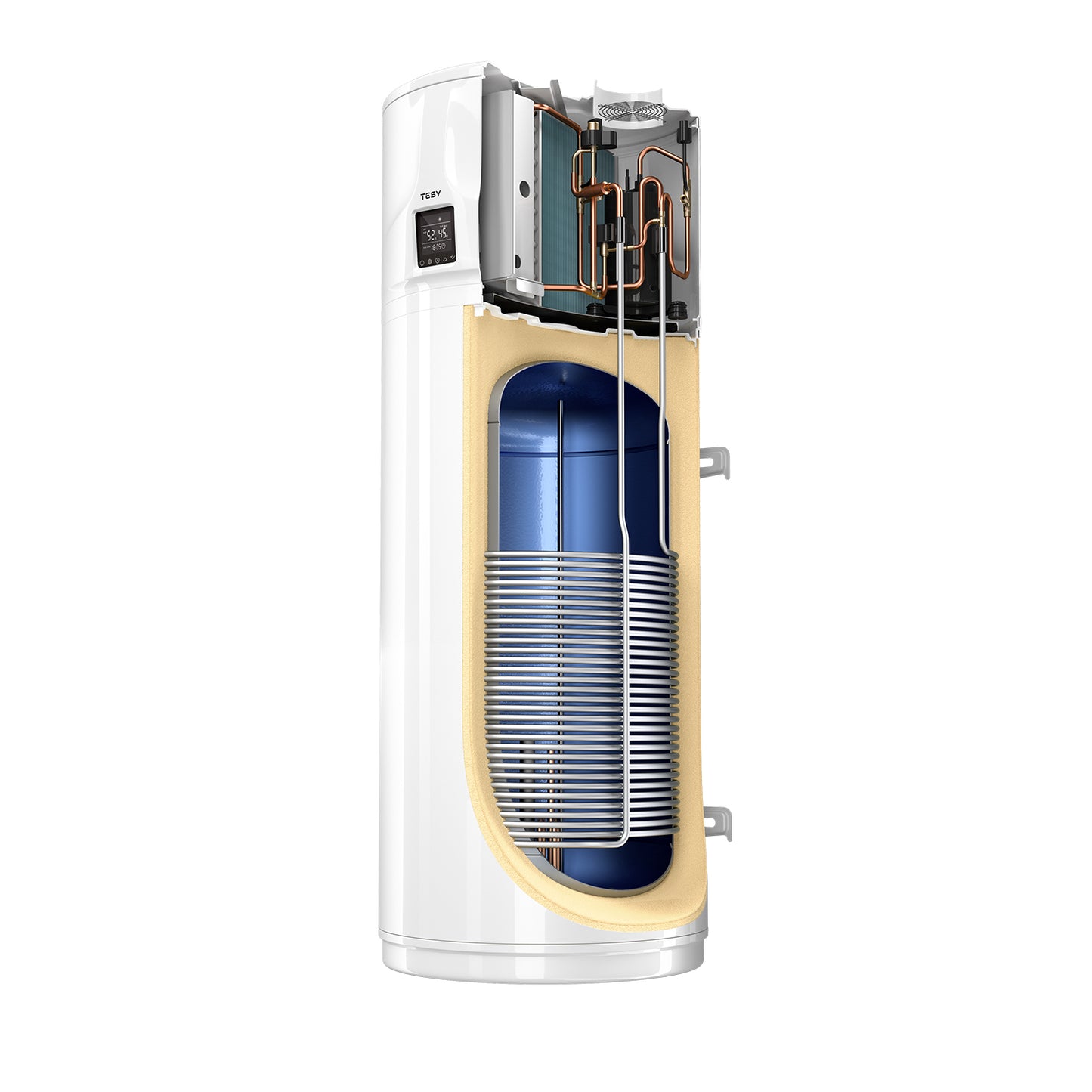

The TESY AquaThermica is a wall-hung compact air source heat pump (ASHP) designed specifically for generating domestic hot water. It combines a built-in air source heat pump and a high-efficiency hot water cylinder into one compact, wall-mounted appliance — available in 100L and 150L capacities.

With an A+ energy efficiency rating and up to 75% lower electricity consumption than a comparable electric hot water cylinder, the AquaThermica is one of the most efficient domestic hot water solutions available. It operates using renewable energy sources, reducing CO₂ emissions and cutting your running costs significantly.

Important Installation Notes

This appliance must be installed in accordance with G3 unvented hot water regulations and requires two forms of safety device on the hot side of the pipework. We recommend:

8-litre expansion vessel
3.5 bar pressure relief valve

Installation must be carried out by a qualified installer.

Warranty & Delivery

2 Years Parts Warranty
Free delivery to UK mainland addresses
For delivery outside UK mainland, please contact us before ordering: 0161 439 1400

Specifications

100L AquaThermica – Technical Specification

TIN Code: 305766

Actual Capacity: 98 L

Refrigerant: R513a

Refrigerant Charge: 760 g

CO2 Equivalent (CO2e): 0.480

Energy Class: A+

CoP (DHW): 3.4

Maximum Working Pressure: 8 bar

HP Maximum Settable Temperature: 60 [70] °C

Height: 1351 mm

Diameter: 541 mm

Transport Weight: 70 kg

Heating Time: 7h 04min

Declared Load Profile: M

Heat Pump Air Intake Temperature Range (90% R.H.): -5 to 43 °C

Installation Site Temperature Range: 4 to 40 °C

Frequency: 50 Hz

Power Supply: 1/N/220–240 V

Compressor: Rotary

Compressor Protection: Thermal circuit breaker with automatic reset

Fan: Centrifugal

Motor Protection: Internal thermal circuit breaker with automatic reset

Condenser: Wrapped externally, not in contact with water

Automatic Anti-Legionella Disinfection Cycle: Yes

Volume of Mixed Water at 40°C / V40 (EN 16147:2017 - A7/W55): 135 L

Key Features & Benefits

Wall-hung compact design — integrates heat pump and cylinder in one unit
Available in 100L and 150L capacities
A+ energy efficiency rating
Maximum water temperature: 60°C
Electronically commutated motor and electronic expansion valve for precision efficiency
User-friendly programmable LCD touch control screen
Built-in diagnostics control system
Automatic anti-Legionella disinfection cycle
Operates in ambient temperatures from -5°C to 43°C
Single-phase 230V power supply — wired via fused spur
Requires 125mm diameter intake and exhaust air hoses (not included)
Refrigerant: R513a — low global warming potential
CoP (DHW): 2.8
Cathodic protection: Mg anode
Sound power: 53 dB(A)
