Reset an Immersion Thermostat Safely at Home
A cold cylinder after the immersion heater has been working can be frustrating, particularly when it leaves a household without hot water. The reset immersion thermostat procedure is often straightforward, but the reset control is a safety device, not a cure for an underlying fault. If it has operated once, it is worth finding out why before simply putting the heater back into service.
An immersion thermostat controls the temperature of stored water in an electric cylinder. Most also include a manual-reset safety cut-out, sometimes called a high-limit thermostat. This back-up device disconnects power if water temperature rises too high. Resetting it may restore hot water, but repeated tripping needs professional attention.
What a reset immersion thermostat actually does
Your immersion heater has an electrical element that warms the water inside the cylinder. The adjustable thermostat monitors the water temperature and should switch the element off at the set temperature, commonly around 60°C. The manual-reset cut-out sits alongside it as an independent safety measure.
If the main thermostat fails closed, is set incorrectly or cannot sense the water temperature properly, the cylinder can continue heating beyond its normal limit. The safety cut-out then trips to prevent overheating. It will not normally reset itself, which is why the immersion heater may appear dead even though the electrical supply is present.
On some heaters, the thermostat and high-limit reset are built into one control assembly beneath the immersion heater cover. On others, the arrangement differs. Do not assume that every button, screw or terminal inside the cover is a reset button.
Before you reset an immersion thermostat
An immersion heater is connected to a fixed electrical circuit, usually through a local double-pole isolator and protected at the consumer unit. Water, metal pipework and exposed electrical connections make this a job to approach carefully.
First, switch off the immersion heater at its local isolator. Then isolate the correct circuit at the consumer unit. If you are not completely sure which circuit supplies the immersion, stop there and arrange for a qualified electrician. Switching off a wall switch alone may not make the equipment safe to touch.
Allow the cylinder to cool if you suspect overheating. Do not remove any cover while the supply is live, and never work around damaged cable insulation, scorch marks, moisture or a burning smell. These are signs to leave the system isolated and call an electrician.
A sensible check before touching the control is:
- confirm the immersion circuit is isolated at the consumer unit;
- make sure nobody can turn it back on while you are working;
- check that the area around the heater head is dry;
- stop immediately if the cover or wiring looks heat-damaged or corroded.
How to reset an immersion thermostat safely

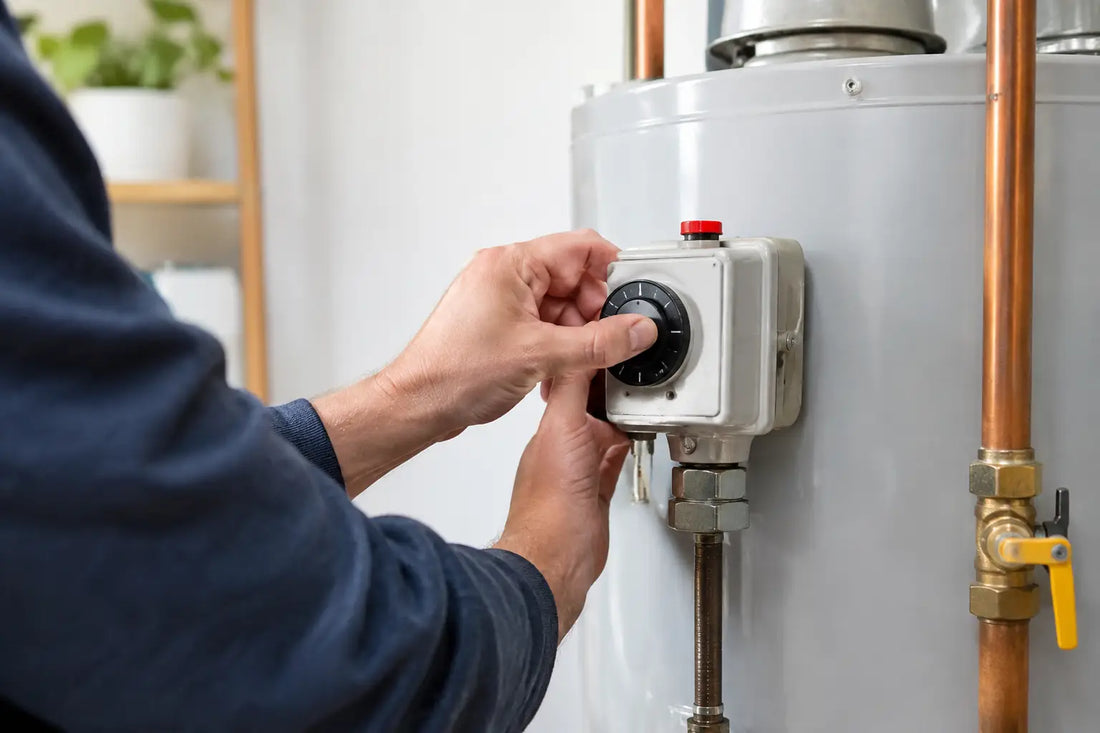

Once the supply has been safely isolated, remove the small cover over the immersion heater thermostat. The reset is often a small button, sometimes red, located on the thermostat body. It may be recessed and require a firm press with an insulated tool. The exact position varies by manufacturer and heater type, so use the product instructions where available.
Press the reset button once. A light click can indicate that the high-limit cut-out has reset, although not every model provides an obvious sound or feel. Do not force it, repeatedly press it or bridge any terminals. Refit the cover fully before restoring power.
Turn the circuit back on at the consumer unit, then switch on the local immersion isolator. If the cylinder has cooled, it can take several hours to heat a full tank, depending on the element rating and cylinder capacity. A 3 kW element heats water more quickly than a 2 kW element, but a larger cylinder naturally takes longer to recover.
Check for hot water later rather than repeatedly operating the switch. If the cut-out trips again, if the water becomes excessively hot, or if the heater does not warm the cylinder, isolate the circuit and book an electrician. Repeated resetting is not a safe troubleshooting method.
Set the thermostat to a suitable temperature
For most domestic stored-hot-water cylinders, a thermostat setting of around 60°C is typical. This temperature is high enough to help control the risk of Legionella bacteria in stored water while avoiding unnecessarily high energy use and scalding risk.
The thermostat dial is not always perfectly precise. If water at taps is uncomfortably hot, do not simply turn the thermostat down without considering the system as a whole. A thermostatic mixing valve may be fitted to blend hot and cold water before it reaches taps, providing safer delivery temperatures while the cylinder remains at an appropriate stored temperature.
Why does the reset button trip?
A one-off trip can happen after a power interruption, an old thermostat becoming unreliable or an unusual period of heating. However, it should not be treated as normal operation. The most common cause is a faulty operating thermostat that has failed to switch the element off at its set point.
Poor contact between the thermostat probe and its pocket can also cause inaccurate sensing. The probe needs to sit correctly within the dedicated dry pocket in the immersion heater assembly. If it has been displaced during previous work, the thermostat may not respond to the actual water temperature as expected.
Other possible causes include damaged wiring, a faulty immersion element, a wrongly selected replacement thermostat or an issue with a timer or off-peak control. In an unvented cylinder, overheating protection and the wider safety controls are especially critical. Any concern about an unvented hot-water system should be assessed by a suitably qualified engineer.
Hard-water areas can add another variable. Limescale around an immersion element may reduce heating efficiency and cause noise, but it does not automatically explain a tripping high-limit thermostat. It is better to have the thermostat, element and electrical connections tested than to assume scale is the answer.
When a reset is not enough
Call a qualified electrician if the reset will not stay in, trips again after heating, or the water is hotter than expected. Also arrange an inspection if the isolator becomes hot, a fuse or circuit breaker trips, you hear persistent buzzing, or there are signs of leaking around the immersion boss.
An electrician can test whether the element has the correct resistance and insulation performance, confirm the thermostat switches at the right temperature, and inspect the supply and connections. This is more reliable than replacing parts by guesswork, particularly where a cylinder is older or has had several components changed over time.
If a replacement is needed, match the thermostat to the immersion heater and cylinder arrangement rather than choosing by appearance alone. The length of the thermostat stem, temperature range, reset specification and terminal layout all matter. A compatible, quality replacement helps maintain safe temperature control and reliable hot-water recovery.
Avoiding future hot-water interruptions
A thermostat reset is a useful safety feature, but dependable hot water starts with correctly matched equipment and proper installation. When replacing an ageing cylinder or immersion heater, consider the household's actual demand, available electrical supply, cylinder capacity and whether a timed or off-peak tariff is in use.
For a compact flat, annexe or occasional-use outlet, a smaller electric water heater may be more practical than maintaining a large stored cylinder. For family homes, a correctly sized mains-pressure cylinder can provide consistent hot water across several outlets. Modern Heat supplies TESY electric hot-water solutions across these requirements, with UK-held stock and support for selecting suitable equipment.
Treat a tripped cut-out as useful information from your hot-water system. Reset it once only when it is safe to do so, then act on any repeat fault before it turns into another cold morning or a more serious repair.
