TESY Buffer Tank for Heat Pump Systems 30L | 4-Port Wall-Hung Insulated
TESY Buffer Tank for Heat Pump Systems 30L | 4-Port Wall-Hung Insulated
Regular price
£184.99 GBP
Regular price
£209.99 GBP
Sale price
£184.99 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Description
Description

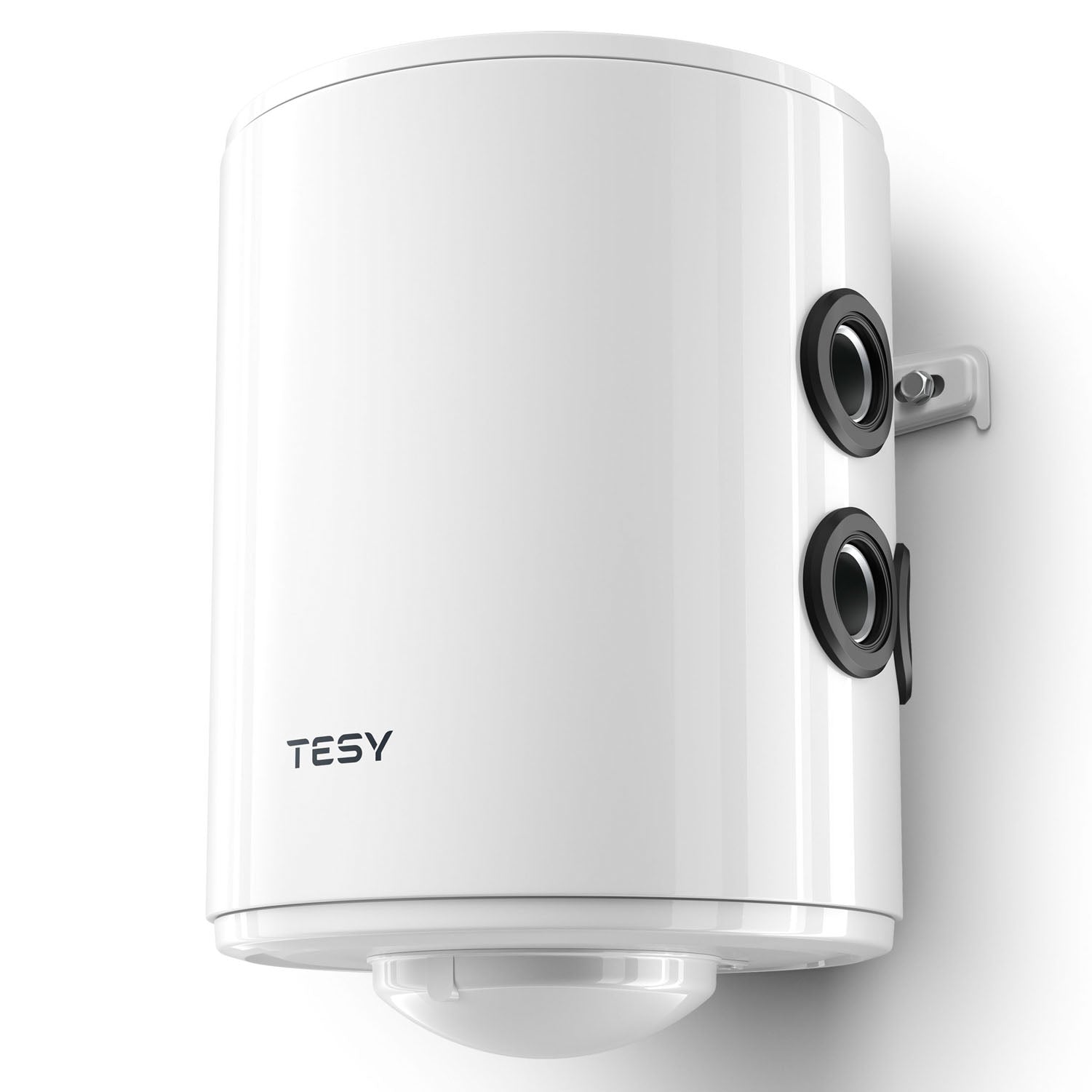

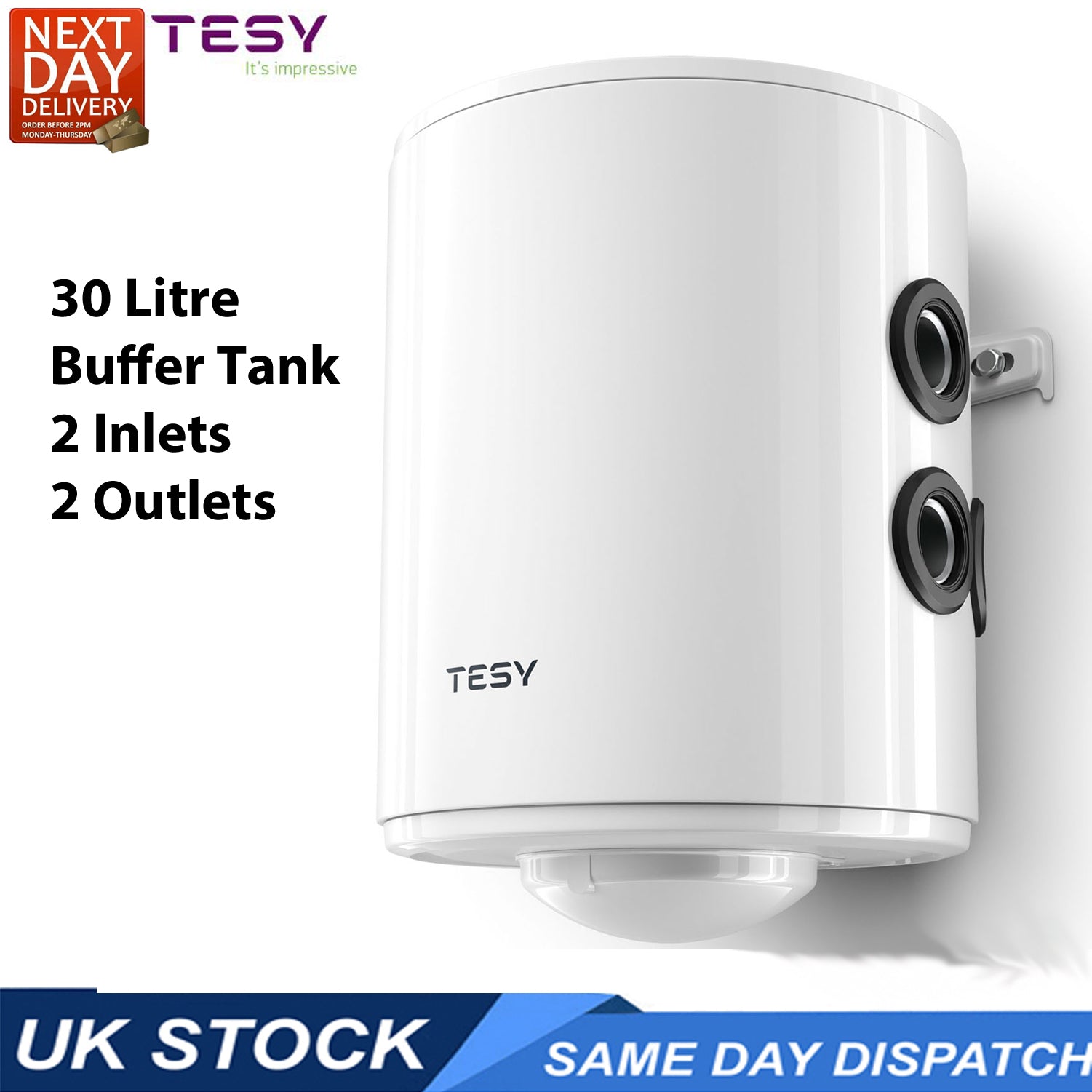

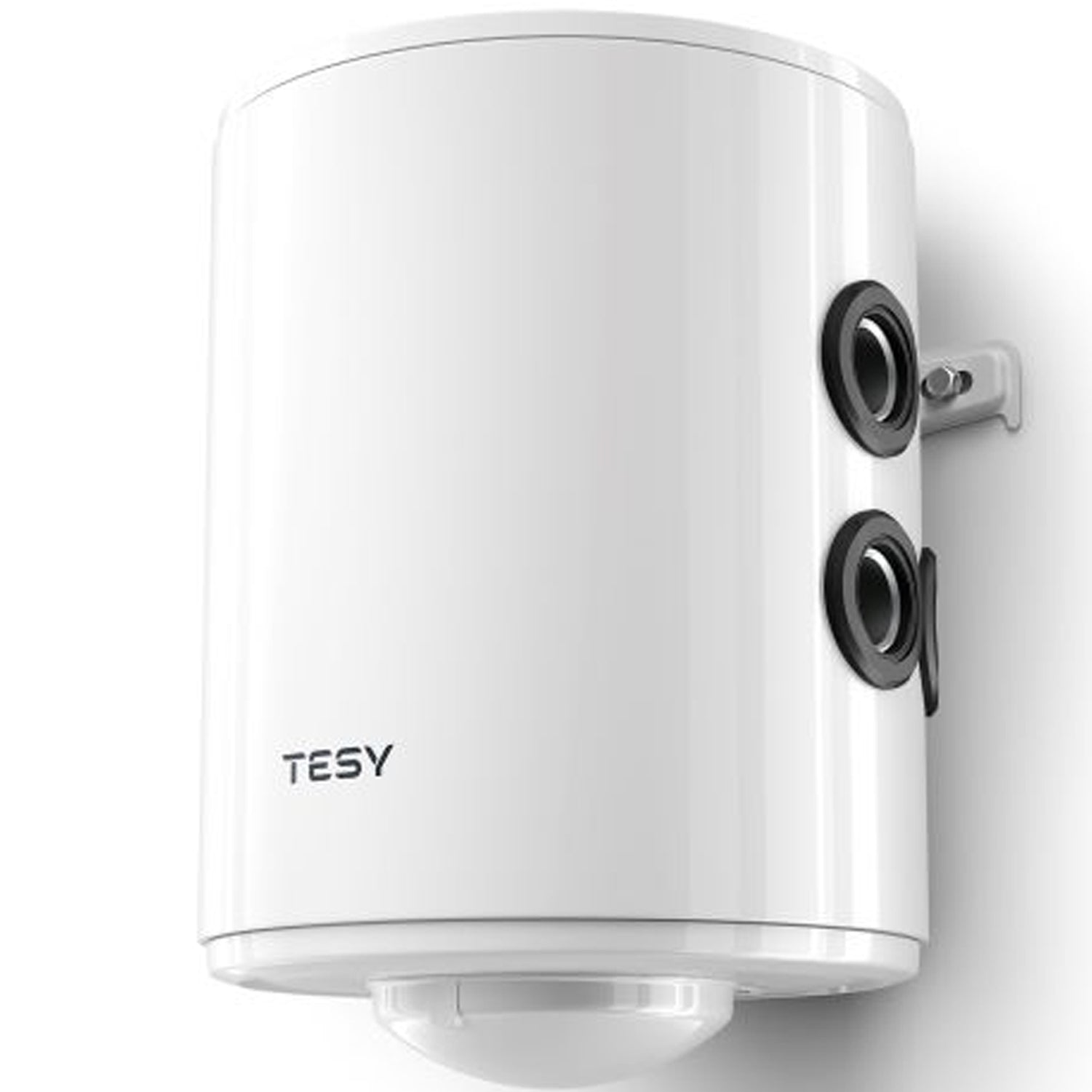

TESY Buffer Tank for Heat Pump Systems 30L | 4-Port is a compact buffer vessel designed to improve stability and efficiency in heat pump heating systems and other multi-source renewable setups. It provides reliable hydraulic separation and heat storage to help maintain steadier temperatures and consistent performance—especially in smaller installations where space is limited.
With four ports (two inlets and two outlets) and robust G1 ½” metal connections, it integrates cleanly into a range of heat pump system layouts, as well as biomass and solar thermal systems (as stated). A dedicated thermo sensor pocket supports accurate temperature monitoring and system optimisation.
To minimise heat loss, the tank is wrapped in 34mm INSUTECH insulation and finished with a durable white metal jacket. It includes an integrated mounting plate for vertical wall installation, plus an AV opening for added safety, with optional anti-condensation insulation on the fittings and the option to add an electric heating element for supplementary heating.
Key features
Installation & compliance
This item must be installed by a qualified heating professional and specified correctly for your heat pump system design and flow requirements. Always follow the manufacturer’s instructions and ensure all fittings, valves, and safety components are selected to suit the system.
With four ports (two inlets and two outlets) and robust G1 ½” metal connections, it integrates cleanly into a range of heat pump system layouts, as well as biomass and solar thermal systems (as stated). A dedicated thermo sensor pocket supports accurate temperature monitoring and system optimisation.
To minimise heat loss, the tank is wrapped in 34mm INSUTECH insulation and finished with a durable white metal jacket. It includes an integrated mounting plate for vertical wall installation, plus an AV opening for added safety, with optional anti-condensation insulation on the fittings and the option to add an electric heating element for supplementary heating.
Key features
- Designed for heat pump systems: supports stable temperatures and efficient operation
- 30L capacity: compact buffer volume for smaller installations
- 4-port design: two inlets + two outlets for simple system integration
- G1 ½” metal connections: designed for high flow rates (as stated)
- Thermo sensor pocket: supports monitoring and optimisation
- INSUTECH insulation (34mm): helps reduce heat loss and improve efficiency
- Vertical wall installation: integrated mounting plate for space-saving fitting
- AV opening: added safety feature (as stated)
- Optional upgrades: anti-condensation insulation and electric heating element option
- Modern finish: white metal jacket for a clean, professional look
- Capacity: 30 litres
- Connections: 4 ports (2 inlets, 2 outlets)
- Connection type/size: G1 ½” metal connections
- Rated pressure: 6 bar
- Maximum operational temperature: 95°C
- Energy class: B
- Insulation: 34mm (INSUTECH technology)
- Heat losses (ΔT 45K): 32.1 W
- Dimensions: 386mm diameter
- Net weight: 12kg
- Finish: white metal jacket
- Mounting: vertical wall installation (integrated mounting plate)
Installation & compliance
This item must be installed by a qualified heating professional and specified correctly for your heat pump system design and flow requirements. Always follow the manufacturer’s instructions and ensure all fittings, valves, and safety components are selected to suit the system.
