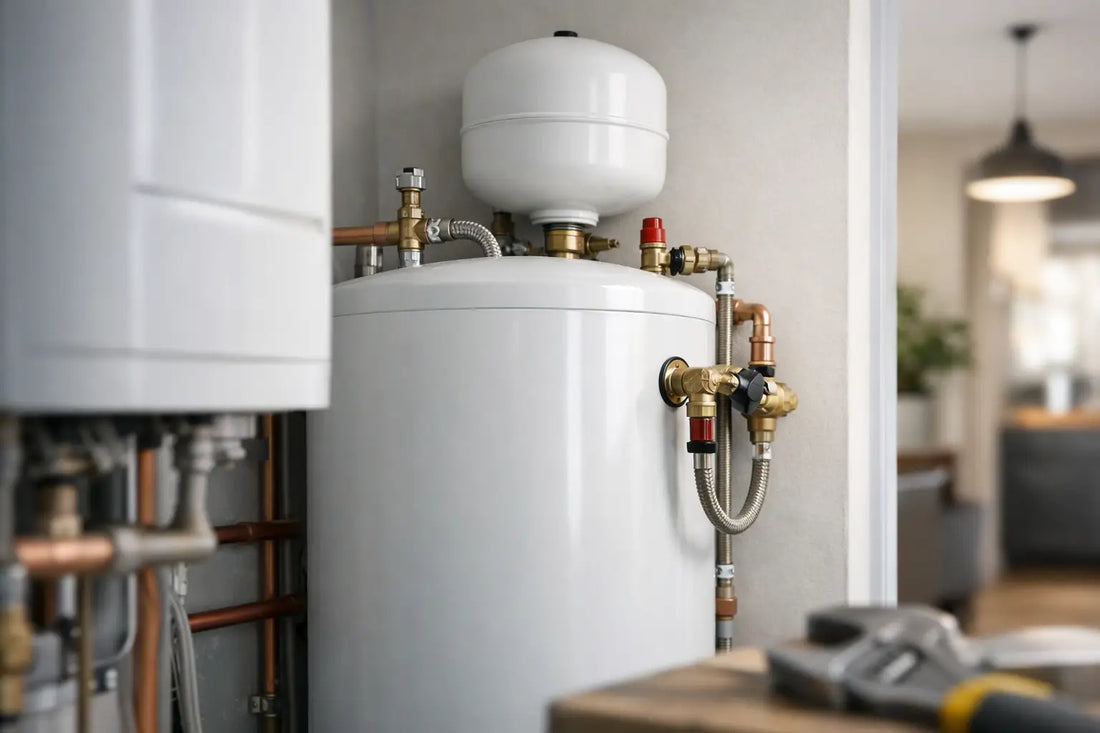

Unvented Hot Water Cylinder Requirements UK

A mains-pressure cylinder can give a home powerful showers, faster bath filling and reliable hot water at several outlets at once. It also stores water under pressure, which is why unvented hot water cylinder requirements are not simply a matter of choosing the right litre capacity. The safety controls, discharge route and installation standard all need to be right from day one.

For homeowners replacing an older vented system, landlords planning a compliant upgrade, and installers specifying a direct electric cylinder, the starting point is the same: select a suitable product, then ensure it is fitted and commissioned by a competent professional.

What makes an unvented cylinder different?

A vented cylinder is supplied from a cold-water storage cistern, usually in the loft, and has an open vent pipe. An unvented cylinder is connected directly to the mains cold-water supply. This gives stored hot water at mains pressure, without needing a loft tank.

The practical benefit is stronger, more consistent flow at showers and taps where the incoming mains supply is adequate. The trade-off is that an unvented system needs dedicated pressure and temperature safety measures. It is not a suitable DIY installation, even where the cylinder is electrically heated rather than connected to a boiler.

A direct electric unvented cylinder contains immersion heaters to heat stored water. It can be a practical choice for flats, extensions, annexes and homes moving away from gas. However, electrical supply requirements, usable hot-water capacity and standing heat loss should all be considered alongside the plumbing installation.

Unvented hot water cylinder requirements in the UK

In England and Wales, unvented hot-water storage systems fall under Building Regulations Approved Document G, particularly G3. The installation must be carried out by someone who is competent to fit unvented cylinders. In practice, this is commonly a G3-qualified installer.

The work must also be notified through the correct route. An installer registered with an appropriate competent person scheme may be able to self-certify the work. Otherwise, Building Control will need to be involved. Requirements can differ in Scotland and Northern Ireland, so check the local rules before installation rather than assuming the England and Wales process applies.

The cylinder must be installed exactly in line with its manufacturer instructions. This matters for clearances, mounting, electrical connections, pipe sizing and warranty conditions. Choosing a quality cylinder is only part of the job. Correct commissioning protects both the household and the product.

Essential safety controls

An unvented system uses several components to control pressure and prevent overheating. Depending on the cylinder and installation arrangement, these typically include a pressure-reducing valve, check valve, expansion vessel, expansion relief valve, temperature and pressure relief valve, and a thermostat with an independent thermal cut-out.

These components are not optional extras. They work together to manage the expansion of heated water and safely release water should pressure or temperature exceed safe limits. No isolating valve should be positioned in a way that could prevent a safety valve from discharging.

An expansion vessel is particularly important where there is no internal air gap arrangement. As water heats, it expands. The vessel provides somewhere for that expanded water to go, reducing unnecessary discharge from the expansion relief valve and helping maintain correct operating pressure.

Safety valves must be correctly rated for the cylinder and installed in the prescribed positions. Mixing unsuitable components, reusing worn valves or making alterations without checking the manufacturer specification can compromise the system.

Discharge pipework and the tundish

Every unvented cylinder needs a correctly designed discharge arrangement. If a relief valve operates, water must be directed safely to a suitable termination point. It must not create a scalding risk, damage the building or go unnoticed.

A visible tundish is normally fitted on the discharge line. This small fitting provides an air break and lets occupants or engineers see if a valve is passing water. Dripping from a tundish is not something to ignore. It can indicate excessive inlet pressure, a failed expansion vessel, debris in a valve or a fault requiring investigation.

The discharge pipework is generally described as D1 and D2 pipework. D1 runs from the safety valve to the tundish. D2 continues from the tundish to the safe termination point. Its material, diameter, length, fall and termination all matter. A long run with multiple bends may need a larger pipe diameter to ensure it can carry a discharge safely.

This is one area where visual shortcuts are risky. A discharge pipe cannot simply be run wherever is most convenient. Your installer should assess the route against the current guidance and the cylinder instructions, including whether the termination is visible, protected from freezing and located where hot water will not endanger people.

Check the incoming mains supply before buying

An unvented cylinder can only deliver the performance available from the property’s cold-water main. A large cylinder will store more hot water, but it will not fix poor incoming flow or low dynamic pressure.

Before selecting a model, ask an installer to assess the incoming pressure and flow rate with water running. Shared supplies, old pipework, restrictive stop taps and pressure fluctuations can all affect shower performance. In some homes, a booster solution may be considered, but it must be designed correctly and comply with water regulations.

This check is especially worthwhile for period properties and flats. If a property has good mains flow, an unvented cylinder can be an excellent upgrade. If the supply is marginal, a different system arrangement may be more suitable.

Choose capacity for the household, not just the cupboard

Cylinder size should reflect how many people use hot water, their bathing habits, the number of bathrooms and the available heat-up time. A household of one or two people with one shower may be well served by a smaller cylinder, while a busy family with two bathrooms will usually need more stored capacity.

There is no single correct size. A 120-litre cylinder may suit a couple with modest demand, whereas a 180-litre or 210-litre model can be a more sensible starting point for a family. The usable amount of hot water also depends on stored temperature, cold inlet temperature and how quickly the cylinder reheats.

With direct electric models, consider the immersion heater rating and your electricity tariff. A larger cylinder gives more reserve, but it costs more to heat if demand is low. Timed heating, smart controls and a well-insulated cylinder can help match energy use to daily routines.

Position, support and access

A filled hot-water cylinder is heavy. The floor or supporting structure must be capable of carrying its full operating weight, not just the empty product weight. This should be checked before delivery, particularly for upper-floor cupboards, timber floors and conversions.

The location should allow access for installation, servicing and replacement of safety components. Avoid boxing the cylinder in so tightly that an engineer cannot inspect the tundish, valves, immersion heaters or wiring. A dry, frost-protected cupboard close to bathrooms can reduce pipe runs and heat loss, but practical access remains essential.

For wall-mounted compact units, the wall type, fixings and load rating need the same care. Never assume a stud partition can support a full cylinder without suitable reinforcement.

Electrical requirements for direct electric cylinders

A direct electric cylinder needs an appropriately designed electrical supply, local isolation and correct cable protection. The exact arrangement depends on the heater ratings and the existing consumer unit. Higher-capacity products may use more than one immersion heater, which can affect circuit planning.

Electrical work must comply with the applicable wiring regulations. In homes, some work may also fall under Part P requirements in England and Wales. A qualified electrician should assess whether the consumer unit has sufficient capacity and whether an upgrade, RCD protection or new circuit is needed.

Do not treat the electrical connection as an afterthought. Confirm it before ordering, especially in older properties where spare ways at the consumer unit may be limited.

Commissioning, certification and ongoing care

Once fitted, the installer should fill, vent and test the system, verify the safety controls and check for leaks. They should explain the controls, show you the tundish and provide the relevant commissioning information and certificates. Keep these documents with the cylinder manual, as they may be needed for warranty support, future servicing or a house sale.

Unvented cylinders should be serviced in line with the manufacturer’s schedule. This often includes checking the expansion vessel charge, cleaning or testing safety valves where specified, inspecting discharge pipework and confirming the operation of thermostats and thermal cut-outs. In hard-water areas, scale can also affect performance and should be considered when planning maintenance.

For rental properties, clear records are particularly useful. While a cylinder service is distinct from gas safety obligations, a well-maintained hot-water system helps reduce breakdowns, tenant disruption and avoidable water damage.

The best unvented installation is one that feels uncomplicated after it is fitted: correctly sized, safely commissioned and easy to maintain. Choose the cylinder around the household’s real hot-water demand, then give the safety and installation details the same priority as capacity and price.
